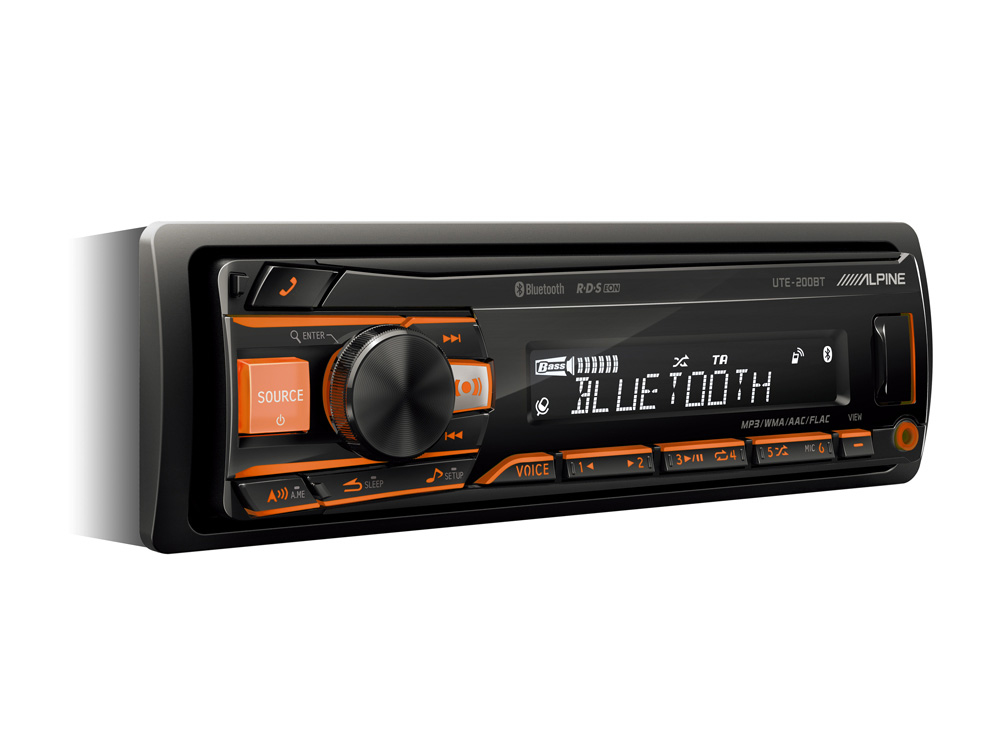

Alpine UTE-200BT

The UTE-200BT is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Connect your iPhone or iPod to enjoy all your stored audio content and Apple Music, stream Spotify or internet radio via Bluetooth audio technology, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.
The included microphone allows clear phone conversations with the built-in Bluetooth hands-free function. You can even adjust the button and display illumination colour separately in the full RGB spectrum, to match your preference and dashboard. Wireless remote controls are available as accessory.
Built-in amplifier: 4 x 50 Watts
2 PreOuts (2 Volts)

Features

Tuner

• Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
• Memory: Auto Memory

RDS

• RDS Functions: AF, TA, TP, PTY, EON
• PTY (Programme Type) Display

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Hands Free Calling: HFP (Hands Free Profile)
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
• Phone Book Search
• Voice Dial Operation
• Auto Answer
• Call Waiting
• Call History Display: Phone Book Call, Dialled Call, Received Call
• Speech Volume Level Adjustment
• Hands-Free Phone Sound Setting
• Firmware Updatable
• Microphone Included

Made for iPhone® / iPod®

• Connection: USB connection (KCU-445i Required)
• Made for iPod/iPhone
• M.I.X. (Shuffle) Play: Track
• Repeat: All, Track
• Battery Charging

USB Media Connection

• Front USB Connection
• MP3, WMA, AAC, FLAC Playback
• Folder Up/Down
• M.I.X. Random Play
• Repeat: Track, Album, All
• USB AOA (Android Open Accessory) 2.0

Sound Tuning

• Subwoofer Level Adjustment
• BASS ENGINE SQ: Level Control 0-6
• Subwoofer Phase Select: 0°/180°
• Subwoofer System Select
• High Pass Filter
• Low Pass Filter
• 2V Voltage 2PreOuts
• 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
• 3-band Parametric Equalizer

General

• Power Output: 4 x 50 W High Power Amplifier
• Display LCD: 14 Segments White LCD Display 1Line
• Control Type: Rotary Encoder Knob
• Variable RGB Illumination Buttons
• 2 PreOuts (2V, Front + Rear/Subwoofer)
• Multi Bit DAC
• Front AUX Input (3.5mm mini jack)
• Steering Wheel Remote Control Ready
• -20dB Mute
• Remote Control Ready
• Clock
• Detachable DIN Trim Plate
• Detachable Face Plate
• Dimmer
• Power Antenna Lead
• Remote Turn-On

Specifications

Max Power Output Ratings

• Max Power Output: 4 x 50W



FM Tuner

• Tuning Range: 87.5 - 108.0 MHz



MW Tuner

• Tuning Range: 531 - 1,602 kHz



LW Tuner

• Tuning Range: 153 - 279 kHz



USB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• File System: FAT 16/32



Sound Tuning

• Subwoofer Level Adjustment: 0 to 15 dB
• Subwoofer Phase Setting: 0° or 180°
• High Pass Filter: Off, 80/100/120 Hz
• Low Pass Filter: Off, 80/100/120 Hz
• Bass Level Control Range: ±7 dB at 100Hz
• Bass Center Frequency: 60/80/100/120 Hz
• Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
• Treble Level Control Range: ±7 dB at 10 kHz
• Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
• Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
• Mid Level Control Range: ±7 dB
• Mid Center Frequency: 500/1k/1.5k/2.5k Hz
• Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)



General

• Power Requirement: 12V.DC
• Pre Output Voltage (Before Clipping): 2V / 10k ohms
• Aux In: 1.4V / 10k ohms
• Maximum Mounting Angle: 30°
• Weight: 0.8 kg



Dimensions

• Din Size: 1 DIN
• Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
