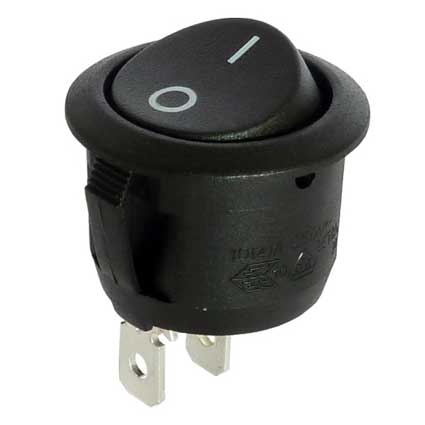

Ampire Strömbrytare On/Off

Round socker switch 1 x on/off , snap-in design

TECHNICAL SPECIFICATIONS
Operating voltage max.250V AC
Current max.10A/250V AC
Current with inductive load, max.4A
Ambient temperature max.85°C
Insulating resistance (500V DC)>100MOhm
Body and rocker Nylon 6.6/UL94V2
Connections silver
Quick-connect terminals 4,8 x 0,8mm
Housing section 20,2mm
Depth 24,3mm
Outer diameter 23,5mm
Production RoHS Compliant
