RetroSound Technophonic

4 x 65W RMS + 1 x 225W RMS 4 Ohm
3 995 kr Svea webpay delbetala Delbetala från 222 kr/mån
Artikelnr: Technophonic
Lagerstatus:
I Lager

För lite effekt?

Tro det eller ej men det är faktist så att man kan spela sönder högtalare för att man har för lite effekt ut till högtalarna. Även om dagens stereoapparater har blivit kraftigare och duger alldeles utmärkt till att driva de flesta högtalare på en "normal" nivå, men vill man kunna vrida på lite mer ordentligt så bör man sätta in ett slutsteg för att driva högtalarna. Detta kommer göra att du får ett bättre, renare ljud och verkligen får ut det mesta ur dina högtalare, framförallt vid högre ljudnivåer.

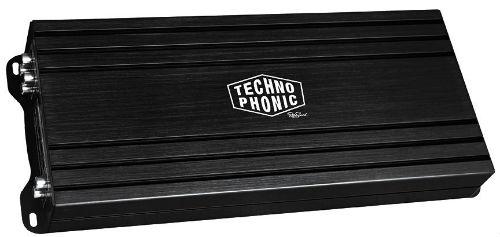

This powerful 5-channel amplifier has four 65 watt RMS full-range channels for mids and highs – plus a mono channel with up to 330 watts (2 ohms) for a subwoofer – allowing a complete audio system to be built using a single Technophonic amplifier. Low-level RCA inputs allow Technophonic to work with any aftermarket radio with RCA outputs. Technophonic comes with a wired remote gain control module that allows you to adjust the bass output on the fly.

Technophonic offers exceptional dynamic range for the best possible sound reproduction from your RetroSound® audio system. The full-range channels have a high-pass crossover for use with full-range speakers. The mono channel has a low-pass crossover to fine tune the bass frequencies for use with a subwoofer. A selectable input mode allows switching between 4 and 5 channel operation.

Technophonic also features low current draw and Class D Digital circuitry. With exceptional dynamic range and low distortion, you'll get the best possible sound from your audio system.

Features
  • 65 watts RMS x 4 channels full-range @ 4 ohms
  • 225 watts RMS x 1 channel subwoofer @ 4 ohms (330 watts RMS @ 2 ohms)
  • Bass Boost
  • Full-range Class D digital circuitry
  • Advanced protection circuitry
  • Built-in low pass (LPF) and high pass (HPF) electronic crossovers
  • Selectable mode switch for 4 and 5 channel operation
  • Works with any aftermarket radio with low-level outputs
  • Includes wired subwoofer remote gain control

Full-Range Power Output @ 4 ohms 65 watts RMS x 4 channels @ 4 ohms
Subwoofer Power Output @ 4 ohms 225 watts RMS x 1 channel @ 4 ohms
Full-Range Power Output @ 2 ohms 95 watts RMS x 4 channels @ 2 ohms
Subwoofer Power Output @ 2 ohms 330 watts RMS x 1 channel @ 2 ohms
Full-Range Frequency Response 40Hz - 65KHz
Subwoofer Frequency Response 24Hz - 250Hz
Total Harmonic Distortion <0.2%
Bass Boost 0-12dB @ 50Hz
Signal to Noise Ratio (EIA rated) >95dB
Input Sensitivity 200mV - 6.0 volts
Crossover Slope 24dB
High Pass Filter (HPF) Frequency Range 40Hz - 400Hz
Low Pass Filter (LPF) Frequency Range 50Hz - 250Hz
Fuses* (fuse door on bottom of amplifier) 30 amp ATC Style (x2)
Dimensions (inches) 12.9” W x 5.3” D x 1.87” H
Dimensions (mm) 330mm W x 134mm D x 47.5mm H

*An additional 60 amp fuse (not included) must be used on the Battery (+) wire at the battery. The fuse must be placed as close as possible to the positive (+) battery terminal (within 6-8 inches away).
