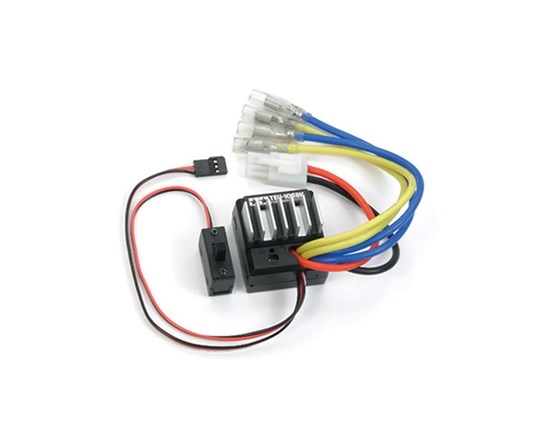

Tamiya ESC TEU-106BK Brushed for dual motor
This is a compact forward/reverse electronic speed controller for twin-motor R/C models such as the Dual Hunter and Super Clod Buster.
A single button allows easy setting of forward/reverse high points and neutral position. The reverse function can be disabled and the ESC features heat and over current protection functions with LED indicator. Compatible with Lithium-Ion battery technologies, and includes a battery cut-off function to prevent over-discharging. Alarm and LED warnings indicate no-signal status. The 106BK features an aluminum heat sink and built-in BEC.
Caution: Motors rated below 25 Turns are not meant to be used with the TEU-105BK and should not be used.
| Special feature 1 | High frequency wave drive system |
| Special feature 2 | Max. continuous current (FET spec): Forward 150A, Reverse 75A |
| Special feature 3 | Output: Forward 100%, Reverse 50% |
| Special feature 4 | Input voltag: 6.6-7.2V |
| Special feature 5 | Compatible motor: Electric brushed motor for RC cars (Up to 2 Sport Tuned Motor or motors more than 25 Turns) |
| Special feature 6 | Drive frequency: 1kHz |
| Special feature 7 | Output voltage for receiver: 6.0V/2A (BEC) |
| Special feature 8 | Dimensions: 35.0x36.5x29.0mm |
| Special feature 9 | Weight: 59g |
