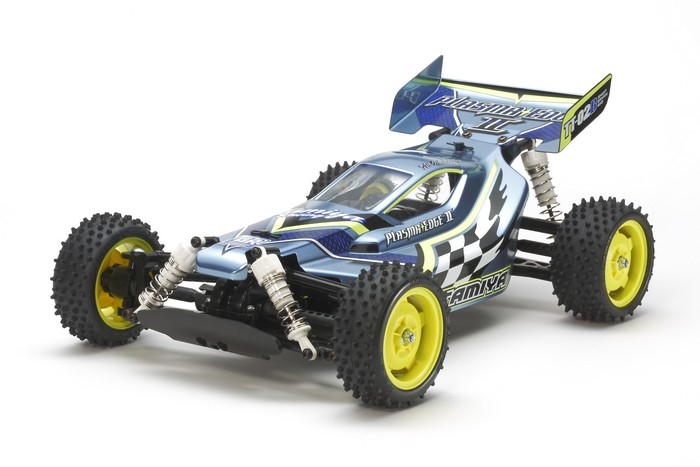

This is an updated version of the classic Plasma Edge buggy body. It features new stickers and a tweaked body design. It is mounted on the easy-to-build and maintenance TT-02B chassis. The TT-02B uses the TT-02 as its base, adding longer suspension arms, CVA shock units, and buggy bumpers to give it great off-road performance. Of course, it retains the TT-02's excellent drivability and ease of assembly and maintenance, while motor cooling ducts and receiver case add to the model's durability.
Scale | 1/10 |
Construction type | Assembly kit |
Terrain use | Off-Road |
Drive-train | 4WD |
Drive type | Gearbox |
Drive line | Dog bone |
Differential type | Gear |
Suspension | Fully independent double wishbone |
Steering mechanism | Bell-crank |
Shock damper | Oil-filled damper |
Shock damper material | Plastic |
Tire type | Rubber |
Tire tread | Pin spike |
Body material | Polycarbonate |
Chassis material | Plastic |
Electronic Speed Control (ESC) | Not Included |
ESC model | |
LED Light buckets | No |
LED lights | No |
Motor | 540-brushed type |
Bearings | Plastic bushing |
Adjustable camber | Fixed |
Adjustable toe angles | Front only |
Adjustable ground clearance | Yes |
Adjustable gear ratio | Yes |
Adjustable wheelbase | Fixed |
Adjustable track width | Fixed |
Adjustable shock angle | Fixed |
Special feature 1 | Torque-tuned motor is included! |
Special feature 2 | The TT-02B Chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 Chassis. |
Special feature 3 | Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity. |
Special feature 4 | 4-wheel double wishbone suspension features long arms and white color CVA shock units, and is combined with high-grip square spike tires to give excellent traction. |
Special feature 5 | Features fluorescent yellow star-dish wheels. |
Special feature 6 | Includes stickers to decorate the body, plus masking stickers for use when painting. |
Special feature 7 | Front and rear gearboxes have differentials to ensure smooth cornering. |
Requires A | 2-channel radio gear |
Requires B | 7.2 battery & charger |
Requires C | Polycarbonate paint |
