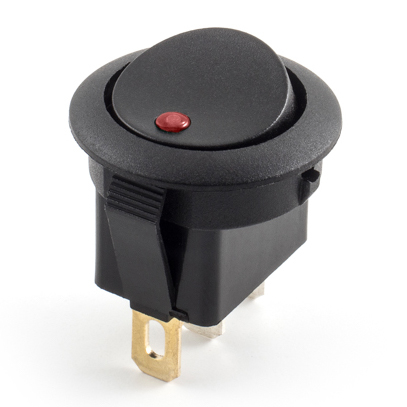

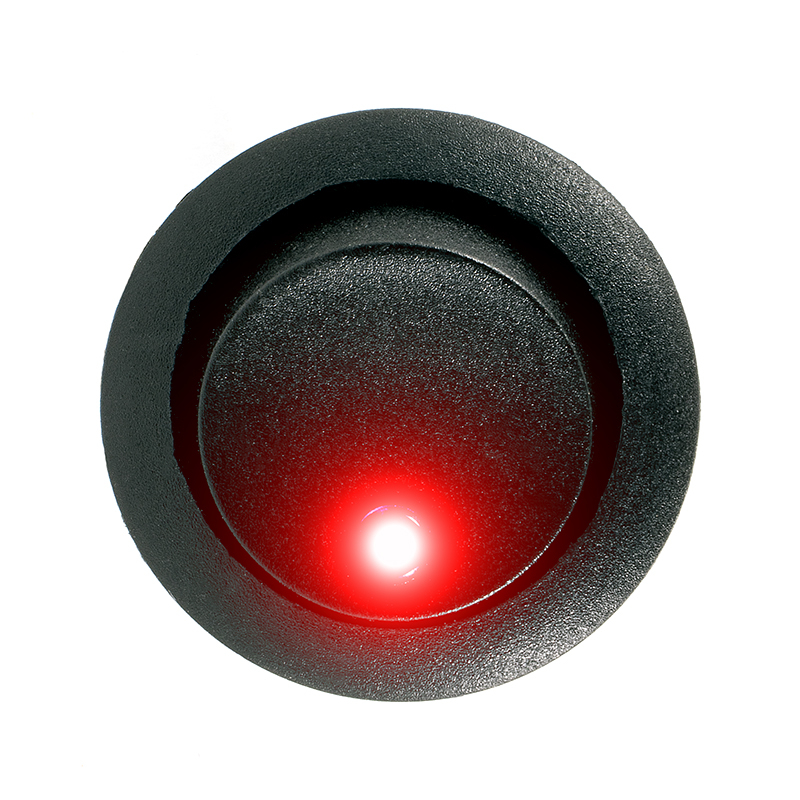

Ampire Strömbrytare On/Off Röd LED

Round socker switch 1 x On/Off, red LED, snap-in design

TECHNICAL SPECIFICATIONS
Operating voltage max.12VDC
Current max.20A/12VDC
Current with inductive load, max.4A
Ambient temperature, max.85°C
Insulating resistance (500V DC)>100MOhm
Body and rocker Nylon 6.6/UL94V2
Connections silver
Quick-connect terminals 4,8 x 0,8mm
Housing section 20,2mm
Production RoHS Compliant
Depth 24,3mmOuter diameter 23,5mm
LED colourred
LED voltage range 12 VDC
