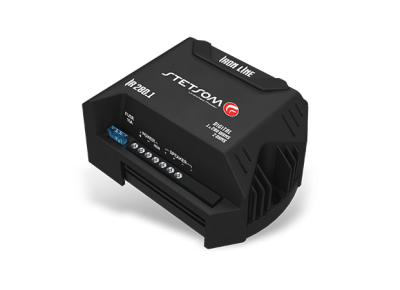

Stetsom IR280.1-2

The IR280.1 Car Audio Amplifier is ideal for internal sound and can be installed with 1 SubWoofer or also for Trio Type: installing with Woofer, drivers and tweeters.

Very compact Amplifier.

Amazing an Bold design.

Power Supply reinforced for Bold Bass and High fidelity in midrange and treble.

Safety Energy Technology: great energy efficiency.

TECHNICAL SPECIFICATIONS
FEATURES IR 280.1
Number of Channels 1
RMS Power at 2 Ohm 12.6V 1 x 220W RMS
RMS Power at 4 Ohm 12.6V 1 x 120W RMS
RMS Power at 2 Ohm 13.8V 1 x 280W RMS
RMS Power at 4 Ohm 13.8V 1 x 150W RMS
Supply Voltage 9,5 ~ 15Vdc
Frequency Response 10Hz ~35KHz
Crossover Low Pass L.P.F: 90Hz
Crossover High Pass H.P.F: 50Hz / H.P.F: 700Hz
Signal to Noise > 90 dB
Harmonic Distortion > 0,03 % THD
Input Sensitivity 230mV
Input Impedance 44K OHMS
Impedance Output 2 OHMS
Consumption with Signal Musical 11,5A
Consumption with Signal Bass 23A
Dimensions (H x W x D) mm 48 x 78 x 112 mm
Weight Kg 0,355 Kg
